2SD1757K is a transistor with low Vce(sat) characteristics, suitable for muting applications.
The 2SD1757K is a low‑VCE(sat) power transistor optimized for muting applications. It offers a collector‑base voltage of 30 V, collector‑emitter voltage of 15 V, and a maximum collector current of 0.5 A. Typical saturation voltage is only 8 mV at IC/IB = 10/1 mA.

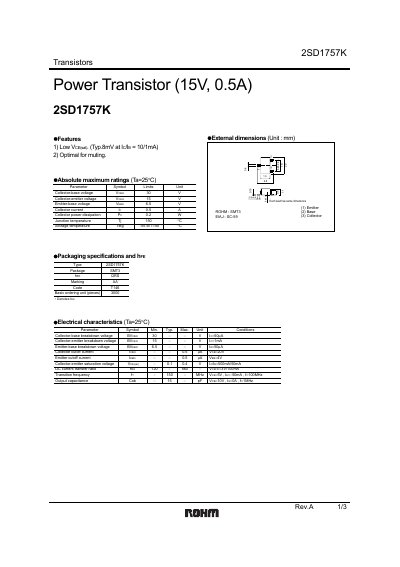

The document lists absolute maximum ratings, detailed electrical parameters, external dimensions, packaging codes, and a series of characteristic curves such as collector‑emitter saturation voltage versus collector current and transition frequency versus emitter current. Application notes and export control information are also included.
| Typical VCE(sat) | 8 mV at IC/IB = 10/1 mA |
|---|
The typical VCE(sat) is 8 mV.
