DTB513ZE / DTB513ZM is a PNP type digital transistor launched by ON Semiconductor. It features a lower VCE (sat) than conventional products and has built-in bias resistors, which eliminates the need for external input resistors to construct an inverter circuit, simplifying device design.
The DTB513ZE and DTB513ZM are low‑VCE(sat) digital transistors featuring built‑in thin‑film bias resistors, rated for –500 mA collector current and –12 V supply. They are offered in an SOT‑416 package and are intended for inverter, interface, and driver circuits.

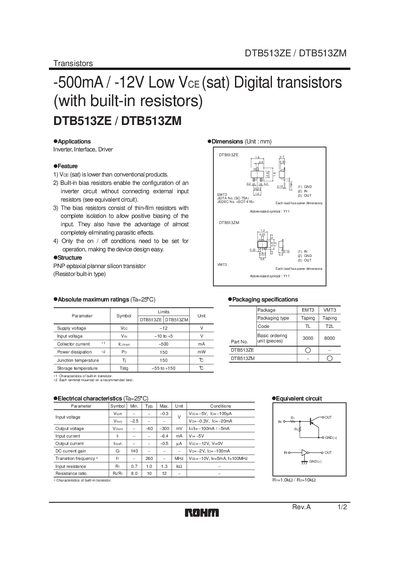

The document lists absolute maximum ratings, packaging details, and extensive electrical characteristics including current gain, transition frequency, and resistance values. Application circuit examples and usage notes are provided, along with legal and warranty disclosures.
| Resistance ratio (Ra/Rt) | 8.0 |
|---|---|
| Package type | SOT‑416 |
It is supplied in an SOT‑416 surface‑mount package.
Yes, it has built‑in thin‑film bias resistors that simplify circuit design.
