2SB1705 is a low frequency amplifier with a large collector current and low saturation voltage.
The 2SB1705 is a low‑frequency amplifier transistor offered by ROHM. It features a large collector current capability and a versatile voltage range, making it suitable for driver and amplifier applications. Key features include high collector current, wide voltage tolerances, and stable operation across temperature ranges.

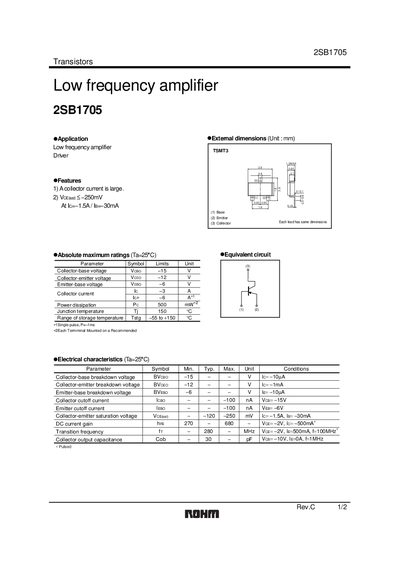

The datasheet lists absolute maximum ratings, detailed electrical characteristics such as breakdown voltages, current gain, and transition frequency, as well as packaging specifications. It also contains legal and export‑control notices for users integrating the device into various electronic equipment.
| Collector‑base breakdown voltage (BVcbo) | 15 V |
|---|---|
| Collector‑emitter breakdown voltage (BVceo) | 12 V |
| Emitter‑base breakdown voltage (BVevo) | 6 V |
| DC current gain (hFE) | 270 – 680 |
| Transition frequency (fT) | 280 MHz |
| Package type code | TL |
| Basic ordering unit | 3000 pieces |
The maximum collector‑emitter voltage is 12 V.
The transistor is supplied in a TL package.
The basic ordering unit is 3000 pieces.
