The 2SB1707 is a low-frequency amplifier with a maximum collector current of 4A and a collector-emitter saturation voltage of -250mV.
The 2SB1707 is a low‑frequency amplifier transistor offered by ROHM. It is intended for use in driver circuits and other low‑frequency applications, featuring a large collector current capability.

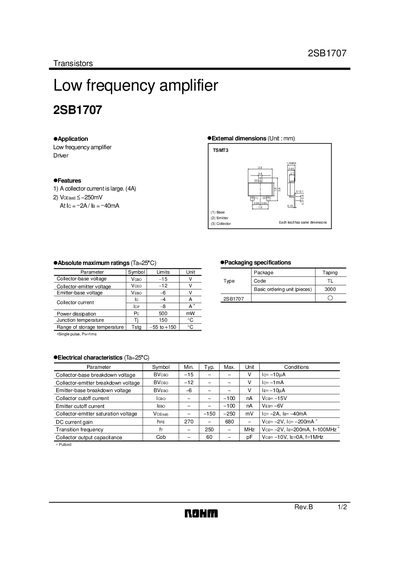

The document lists absolute maximum ratings, electrical characteristics such as collector‑base voltage, collector current, power dissipation, and gain, as well as packaging details and characteristic curves for both DC and pulsed operation.
| Collector‑base voltage (Vcbo) | 15 V |
|---|---|
| Collector‑emitter breakdown voltage (BVceo) | 12 V |
| Emitter‑base breakdown voltage (BVezo) | 6 V |
| Power dissipation (Pc) | 500 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 to +150 °C |
| DC current gain (hFE) | 270‑680 |
| Transition frequency (fT) | 250 MHz |
| Collector output capacitance (Cob) | 60 pF |
| Basic ordering unit | 3000 pieces |
The collector‑base breakdown voltage is 15 V.
The device can dissipate up to 500 mW.
The basic ordering unit is 3000 pieces.
