RPR-220PC30N is a photosensor. It is used in printers, MFPs, etc. It has the following features: 1. Plastic lens design, high sensitivity; 2. Built-in visible light filter, which minimizes the interference of external light; 3. Small size and light weight.
The RPR-220PC30N is a reflective photosensor (photoreflector) offered by ROHM. It is intended for use in general‑purpose electronic equipment such as audio‑visual, office‑automation, communication devices, and other consumer electronics.

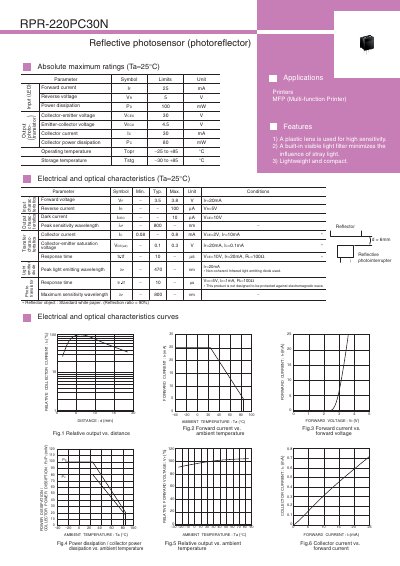

The document lists absolute maximum ratings, electrical and optical characteristics, mechanical dimensions, and usage notes. Key parameters include a forward current of 25 mA, collector‑emitter voltage of 30 V, power dissipation up to 100 mW, operating temperature from –25 °C to +85 °C, peak sensitivity at 800 nm, dark current below 100 pA, and a response time of about 10 µs.
| Forward current (If) | 25 mA |
|---|---|
| Collector‑emitter voltage (Vceo) | 30 V |
| Power dissipation (Po) | 100 mW |
| Operating temperature | –25 °C to +85 °C |
| Peak sensitivity wavelength | 800 nm |
The maximum forward current is 25 mA.
It operates from –25 °C up to +85 °C.
The peak sensitivity wavelength is 800 nm.
No, the product is not designed to be protected against electromagnetic waves.
