The RPM-012PB is an ultra-small, high-sensitivity chip sensor that features original technology, original structure, and original optical design that allows it to be used with automatic mounting machines, reflow, and has a ultra-small size and high sensitivity.
The RPM-012PB is an ultra‑small, high‑sensitivity chip sensor designed for optical control equipment and sensor receivers. It features a compact 3 mm × 3 mm × 2 mm surface‑mount package and can be mounted using reflow soldering.

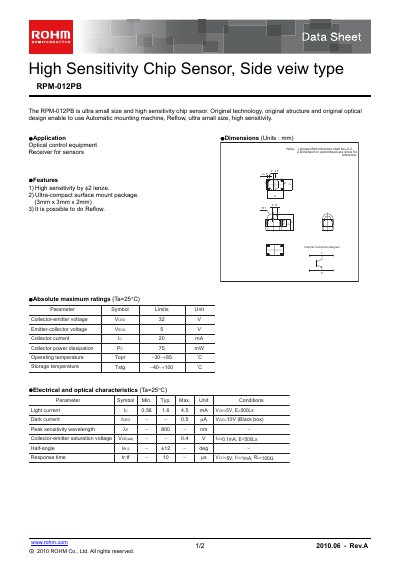

The datasheet lists key electrical parameters such as a 32 V collector‑emitter voltage, 20 mA collector current, and 75 mW power dissipation, as well as optical specs like light current and peak sensitivity wavelength. Application notes and typical characteristic curves are also included.
| Collector‑emitter voltage (Vceo) | 32 V |
|---|---|
| Collector current (Ic) | 20 mA |
| Power dissipation (Po) | 75 mW |
| Light current (typical) | 1.6 mA |
It uses an ultra‑compact surface‑mount package measuring 3 mm × 3 mm × 2 mm.
Yes, the device can be mounted with a reflow process.
The maximum collector‑emitter voltage is 32 V.
