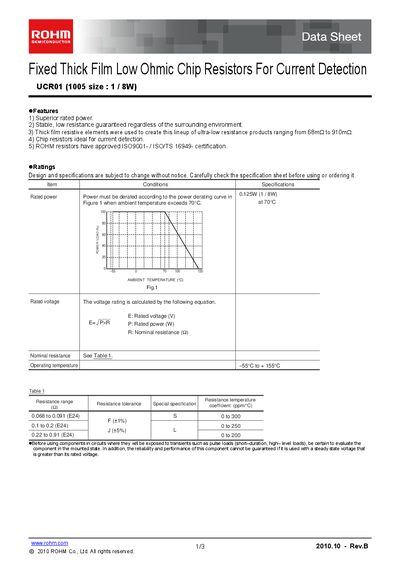

This document is the product manual for ROHM UCR01 1005 size : 1 / 8W thick film low ohmic chip resistors. It provides detailed information on product features such as rated power, rated voltage, operating temperature, nominal resistance, resistance tolerance, and special specifications.
The UCR01 series are fixed thick‑film chip resistors designed for current‑detection applications. They offer superior rated power, stable low resistance across a wide temperature range, and ISO‑9001/ISO‑TS 16949 certification.
The document lists electrical ratings, mechanical dimensions, packaging options (paper‑tape and reel), and test conditions such as soldering temperature and environmental endurance. It also includes safety notices and usage guidelines for designers.
| Operating temperature | -55 °C to +155 °C |
|---|---|
| Certification | ISO 9001 / ISO‑TS 16949 |
The resistors are supplied on paper‑tape (2 mm pitch) and on 180 mm reels compatible with the JEITA standard.
Yes, they are certified to ISO 9001 and ISO‑TS 16949.
