This is a fixed thick film low ohm chip resistor, ideal for current detection. It has high rated power and low resistance.
The UCR18 is a fixed thick‑film low‑ohmic chip resistor designed for current detection, available in a 3216 (1206) 1/2 W package. It offers a low resistance range suitable for detecting currents from 11 mA to 100 mA and features a unique chip and terminal configuration that reduces resistance shift during mounting.

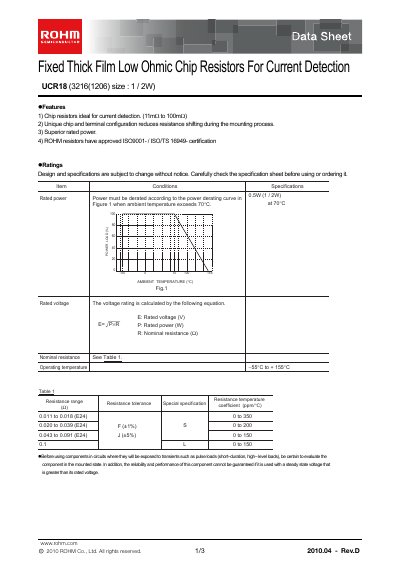

The datasheet lists the resistor's electrical ratings, temperature range, and packaging options. Rated power is 0.5 W (1/2 W) with derating above 70 °C, and it operates from –55 °C to +155 °C. The device complies with ISO 9001 and ISO/TS 16949 certifications and is supplied on a 180 mm reel compatible with the JEITA EIA‑ET‑7200B standard.
| Operating temperature range | –55 °C to +155 °C |
|---|---|
| Packaging type | Reel (180 mm), JEITA EIA‑ET‑7200B compliant |
It can operate from –55 °C up to +155 °C.
The resistor is supplied on a 180 mm reel that complies with the JEITA EIA‑ET‑7200B standard.
Yes, it is ideal for current detection ranging from 11 mA to 100 mA.
