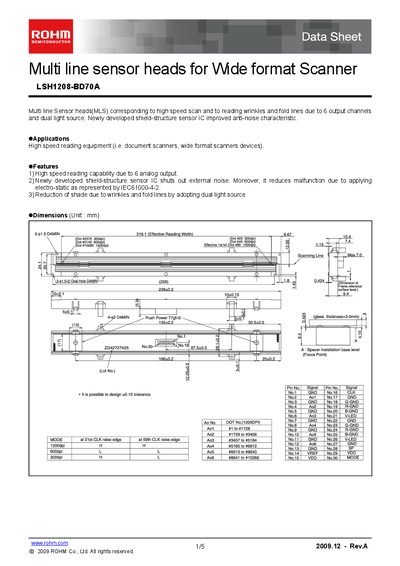

This document introduces the multi-line sensor heads (MLS) developed by ROHM, which are suitable for high-speed scanning and reading wrinkles and fold lines. The product features 6 output channels and dual light source, enabling high-speed reading and anti-noise characteristics. It is suitable for high-speed reading equipment such as document scanners and wide format scanners.
The LSH1208‑BD70A is a multi‑line sensor head (MLS) designed for high‑speed document and wide‑format scanners. It features six analog output channels and a dual light source to reduce shading from wrinkles and folds, and its shield‑structure sensor IC improves anti‑noise performance.
Key specifications include a 216 mm effective scanning width, 1200 dpi dot density, 3.3 V power supply, and an 8 MHz clock. The datasheet lists detailed pin assignments, timing charts for various DPI modes, and circuit diagrams for both the inner and peripheral circuitry.
| Effective scanning width | 216 mm |
|---|---|
| Primary scan dot density | 1200 dpi |
| Total dot number | 10368 dots |
| Power supply voltage (Voo) | 3.3 V |
| Reference voltage (VREF) | 0.8 V |
| Clock frequency (CLK) | 8 MHz |
| Maximum dynamic range (VRMax) | 0.5 V |
| Operating temperature | -5 to 45 °C |
The effective scanning width is 216 mm.
It provides six analog output channels.
The device requires a 3.3 V power supply.
The maximum clock frequency is 8 MHz.
