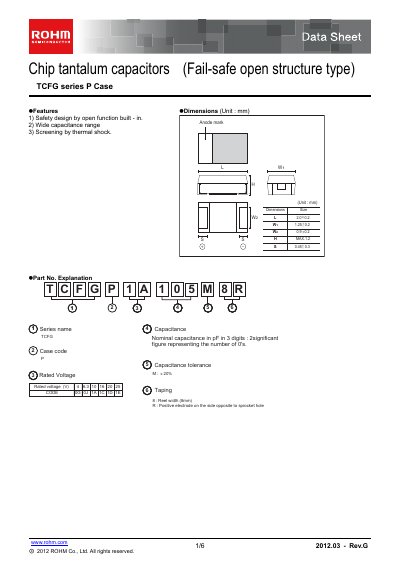

This document is a datasheet of TCFG series chip tantalum capacitors. It mainly introduces the features of this series of products, including safety design, wide capacitance range, screening thermal shock and so on.
This ROHM datasheet describes the TCFG series P‑case chip tantalum capacitors. It lists key features such as safety‑open design, wide capacitance range and thermal‑shock screening, and provides part numbers, dimensions and case codes.
The document also details electrical characteristics (rated voltage, capacitance range, leakage current, tolerance, surge voltage), test conditions, and packaging specifications, along with legal notices and usage guidelines.
| Operating Temperature | -55 °C to +125 °C |
|---|---|
| Rated Voltage | 4 V, 6.3 V, 10 V, 16 V, 20 V, 25 V |
| DC Leakage Current | 0.5 µA or 0.01 CV, whichever is greater |
| Capacitance Tolerance | ±20 % |
| Surge Voltage | 5 V, 8 V, 13 V, 20 V, 26 V, 32 V at 85 °C |
They operate from –55 °C up to +125 °C.
Rated voltages of 4 V, 6.3 V, 10 V, 16 V, 20 V and 25 V are offered.
The leakage current is 0.5 µA or 0.01 CV, whichever is greater.
The tolerance is ±20 %.
