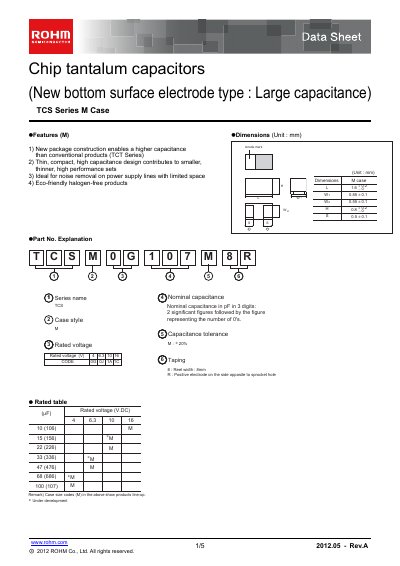

This document is a datasheet for the TCS Series M Case Chip Tantalum Capacitors. It provides information on the features, specifications, and dimensions of the products.
The ROHM TCS Series M Case data sheet provides detailed specifications for the new bottom‑surface electrode chip tantalum capacitors. It includes features such as higher capacitance in a compact M‑case package, eco‑friendly halogen‑free construction, and a range of voltage and capacitance options.
Key information covers rated voltage options, capacitance tolerance, operating temperature range, dimensional data, marking conventions, performance test conditions, and packaging specifications. The document also contains legal notices and contact information for further product details.
| Rated voltage options | 4 V, 6.3 V, 10 V, 16 V |
|---|---|
| Operating temperature range | 55 °C to +125 °C |
The capacitors are offered with rated voltages of 4 V, 6.3 V, 10 V and 16 V.
The devices operate from 55 °C up to +125 °C.
