TCFG series is a type of tantalum capacitor produced by ROHM Co., Ltd. It has a safe design, wide capacitance range and screening function.

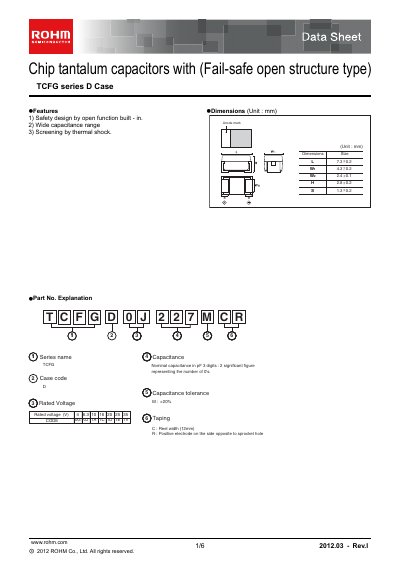

The TCFG Series D Case data sheet describes ROHM's chip tantalum capacitors that feature a fail‑safe open structure. It lists the series name, case code, and safety‑focused design, along with part‑number explanations and marking conventions.
Key specifications include a wide voltage range, operating temperature from –55 °C to +125 °C, and detailed packaging information such as 180 mm plastic reels. Test conditions, performance characteristics, and dimensional data are also provided for designers.
| Rated Voltage | 4 V, 6.3 V, 10 V, 16 V, 20 V, 25 V, 35 V |
|---|---|
| Operating Temperature | –55 °C to +125 °C |
| Surge Voltage (85 °C) | 5 V – 44 V depending on rating |
| DC Leakage Current | 0.5 µA or 0.01 CV, whichever is greater |
| Reel Width (Packaging) | 12 mm |
| Case Size | L 7.3 mm × W 4.34 mm × H 2.44 mm |
| Packaging Style | Plastic reel, 180 mm, CR 500 |
The rated voltage options are 4 V, 6.3 V, 10 V, 16 V, 20 V, 25 V, and 35 V.
They operate from –55 °C up to +125 °C.
They are supplied on a 180 mm plastic reel with a basic ordering unit of CR 500.
