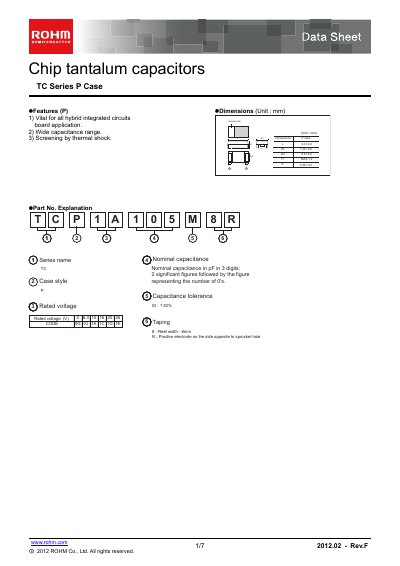

The data sheet introduces the characteristics, specifications and models of rohm's TC series p type capacitors
The TC Series P is a line of chip tantalum capacitors designed for hybrid integrated circuit board applications. The data sheet lists the series' features, dimensions, part numbers, and marking conventions.
Key specifications include operating temperature range, rated voltage options, capacitance tolerance, leakage current, surge voltage, and packaging information. Test conditions follow JIS C 5101 standards, and the document also outlines mechanical and reliability test methods.
| Operating Temperature | –55°C to +125°C |
|---|---|
| Rated Voltage (VDC) | 4 V, 6.3 V, 10 V, 16 V, 20 V, 25 V |
| DC Leakage Current | 0.5 pA or 0.01 CV whichever is greater |
| Surge Voltage (VDC) at 85°C | 5.0 V, 8 V, 13 V, 20 V, 26 V, 32 V |
The TC Series P capacitors are available with rated voltages of 4 V, 6.3 V, 10 V, 16 V, 20 V, and 25 V.
They operate from –55 °C up to +125 °C.
