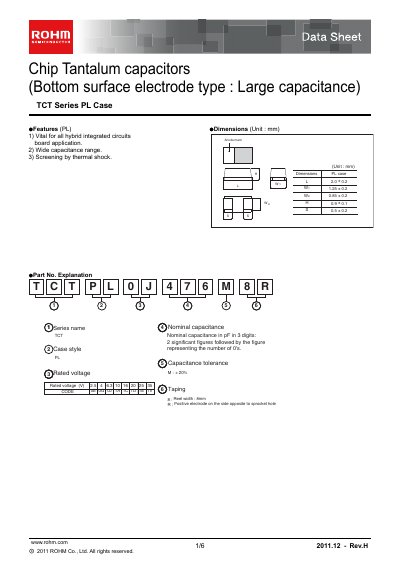

This document describes the features and dimensions of the TCT series PL Case tantalum capacitors produced by ROHM. These capacitors are vital for all hybrid integrated circuit board applications and offer a wide capacitance range and screening by thermal shock.
The ROHM TCT Series PL Case data sheet provides detailed specifications for the PL‑type tantalum chip capacitors. It includes features, physical dimensions, rated voltage tables, marking requirements, electrical performance, test conditions and packaging information.
The document also contains handling notes, test procedures, and legal notices, making it a comprehensive reference for designers and manufacturers using these components.
| Operating Temperature | -55 °C to +125 °C |
|---|---|
| Rated Voltage (VDC) at 85 °C | 2.5, 4, 6.3, 10, 16, 20, 25, 35 V |
| Surge Voltage (VDC) at 85 °C | 3.2/5.2, 8, 13, 20, 26, 32, 44 V |
The capacitor must show polarity (bar on the anode side), rated DC voltage code, and capacitance code.
The recommended soldering temperature is about 245 °C.
