This is a safe design chip tantalum capacitor, which has a wide capacitance range and screening thermal shock performance.

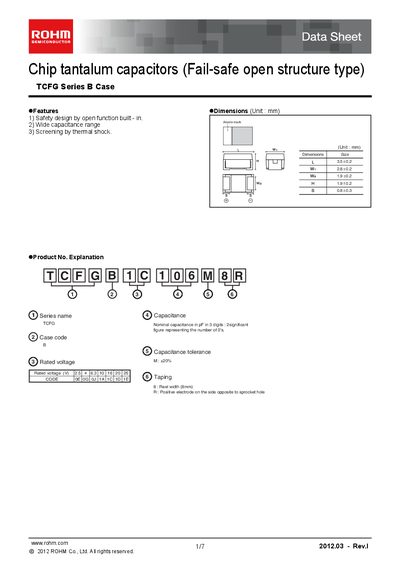

The TCFG Series B case data sheet provides the electrical and mechanical specifications for ROHM's fail‑safe open‑structure chip tantalum capacitors. It includes features, dimensions, capacitance ranges, test conditions and packaging details for designers and manufacturers.
Key information such as operating temperature limits, rated voltage options, leakage current, surge voltage and packaging style are listed, along with standard test methods based on JIS C5101 series specifications.
| Operating temperature range | -55 °C to +125 °C |
|---|---|
| Rated voltage (VDC) options | 2.5 V, 4 V, 6.3 V, 10 V, 16 V, 20 V, 25 V |
| DC leakage current | 0.5 µA or 0.01 CV, whichever is greater |
| Surge voltage (at 85 °C) | 3.2 V / 5.0 V (varies with rating) |
| Packaging style | Plastic taping on 180 mm reel, 2,000 units per reel |
The capacitors operate from –55 °C up to +125 °C.
Rated voltages are offered at 2.5 V, 4 V, 6.3 V, 10 V, 16 V, 20 V and 25 V.
They are supplied in plastic‑taped reels of 180 mm, with a basic ordering unit of 2,000 pieces per reel.
