Introduces the features, dimensions, type, rated voltage, tolerance, etc. of TCT series AS package tantalum capacitors

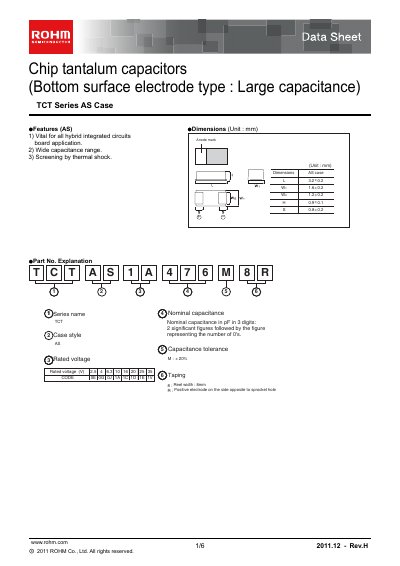

The ROHM TCT Series AS case data sheet provides detailed specifications for the bottom‑surface‑electrode tantalum capacitors. It includes features, dimensions, part numbers, rated voltage codes, and test conditions based on JIS standards.
Packaging information, marking conventions, and handling guidelines are also listed, along with a notice about usage restrictions and export controls.
| Operating Temperature | -55 °C to +125 °C |
|---|---|
| Rated Voltage (DC) | 2.5 V, 4 V, 6.3 V, 10 V, 16 V, 20 V, 25 V, 35 V |
| Surge Voltage (85 °C) | 3.2 V‑5.0 V up to 44 V |
| External Dimensions (mm) | L 3240.2, Wa 1.6402, Ws 1.2402, H 0.9401 |
The capacitors operate from –55 °C up to +125 °C.
