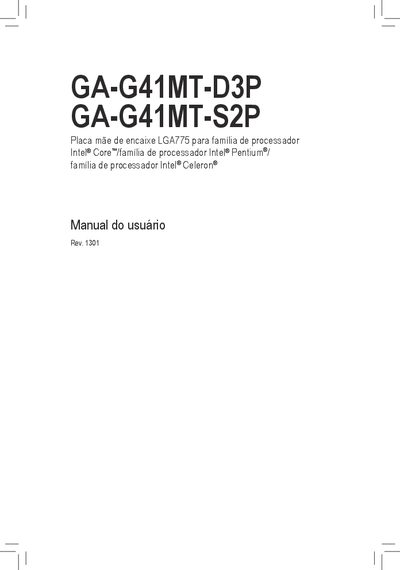

GA-G41MT-D3P GA-G41MT-S2P is a LGA775 socket motherboard for Intel® Core™ / Intel® Pentium® / Intel® Celeron® processor, this document is its user manual
This manual provides step‑by‑step instructions for installing the GA‑G41MT‑D3P and GA‑G41MT‑S2P motherboards, including CPU, cooler, memory, expansion cards and all front‑panel and internal connectors. It also details safety precautions such as ESD protection, power‑off procedures and battery handling.
The document lists the technical specifications of the boards, describes the BIOS features (DualBIOS, Q‑Flash, EasyTune, etc.), and explains how to configure audio, LAN, USB and other interfaces. Additional sections cover CMOS clearing, battery replacement and troubleshooting tips. This manual is written in Portuguese.
| CPU socket | LGA775 |
|---|---|
| Supported CPUs | Intel® Core™ 2 Extreme/Quad/Duo, Pentium, Celeron |
| Chipset | Intel® G41 Express (North Bridge) / Intel ICH7 (South Bridge) |
| Memory slots | 2 DDR3 DIMM slots, up to 8 GB, Dual Channel, 1333/1066/800 MHz |
| SATA ports | 4 × SATA 3 Gb/s |
| USB ports | Up to 8 × USB 2.0/1.1 (4 rear, 4 internal) |
| Audio codec | VIA VT2021 / Realtek ALC889, 2/4/5.1/7.1 channels |
| LAN controller | Atheros AR8151 Gigabit Ethernet (10/100/1000 Mbit) |
| Form factor | Micro ATX, 24.4 cm × 19.4 cm |
| BIOS flash size | 28 Mbit |
Disconnect the AC power, use an anti‑static wrist strap or touch a metal object, keep the board on an anti‑static mat, and avoid touching contacts or leaving screws on the circuitry.
The board provides up to eight USB 2.0/1.1 ports – four on the rear panel and four internal connectors.
Use the CLR_CMOS jumper by shorting its two pins for a moment, then remove the jumper before powering the system again.
It uses an LGA775 socket compatible with Intel® Core™ 2, Pentium and Celeron processors.
