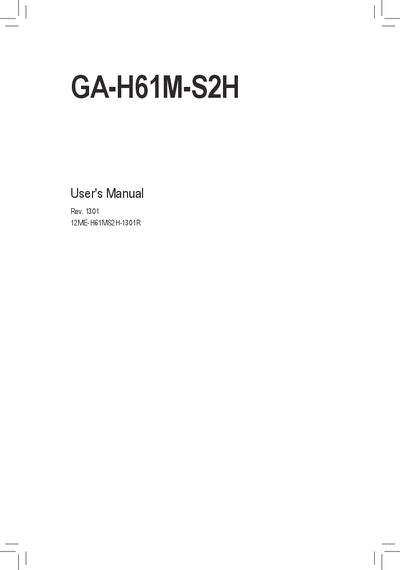

This document is the user manual for GA-H61M-S2H motherboard, including product specifications, hardware installation guide, and BIOS settings.
This manual explains how to safely install and configure the GA-H61M-S2H motherboard. It includes safety precautions, ESD handling guidelines, and detailed wiring instructions for power and peripheral connections.
The document also lists the board’s technical specifications such as supported CPUs, memory types, integrated graphics, audio codec, LAN controller, expansion slots, storage interfaces, and USB ports, along with BIOS configuration options and driver installation procedures.
| CPU Support | Intel Core i7/i5/i3, Pentium, Celeron (LGA1155) |
|---|---|
| Chipset | Intel H61 Express Chipset |
| Memory | 2× DDR3 DIMM sockets, up to 16 GB, DDR3 1333/1066/800 MHz |
| Integrated Graphics | D‑Sub, DVI‑D, HDMI ports (max 1920×1200) |
| Audio | Realtek ALC889 codec, HD Audio 2/4/5.1/7.1 channels |
| LAN | Atheros GbE LAN chip (10/100/1000 Mbit) |
| SATA | 4× SATA 3 Gb/s connectors |
| USB Ports | Up to 8 USB 2.0/1.1 ports |
| Power Connectors | 1× 24‑pin ATX main, 1× 4‑pin ATX 12V |
The revision number appears as “REV: X.X”, for example “REV: 1.0”.
An Atheros Gigabit Ethernet controller (10/100/1000 Mbit) is built in.
