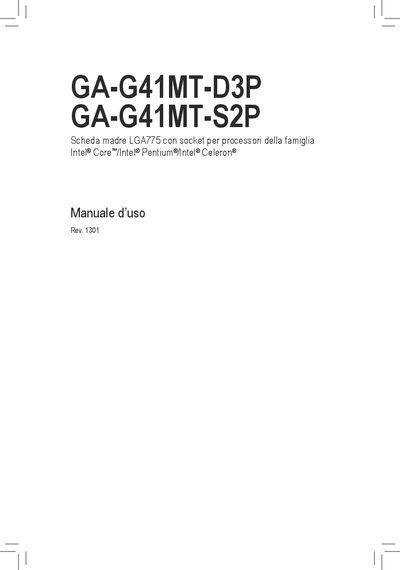

This document provides installation and configuration information for GA-G41MT-D3P and GA-G41MT-S2P LGA775 motherboards, compatible with Intel Core/Intel Pentium/Intel Celeron processors. The document covers precautions for installation, CPU and heatsink installation, memory and expansion card installation, as well as an overview of the rear panel and internal connectors.
This manual provides step‑by‑step instructions for installing and configuring the Gigabyte GA‑G41MT‑D3P and GA‑G41MT‑S2P motherboards. It includes safety precautions, CPU and memory installation, expansion card setup, and detailed descriptions of rear‑panel and internal connectors.
The document also lists the technical specifications of the boards, such as supported processors, chipset details, memory capacities, integrated graphics, audio codec, LAN controller, and form factor, as well as guidance for BIOS configuration, CMOS reset, and battery replacement. This manual is written in Italian.
| CPU socket | LGA775 |
|---|---|
| North Bridge chipset | Intel G41 Express |
| SATA ports | 4 SATA 3 Gb/s ports |
| USB ports | up to 8 USB 2.0/1.1 ports |
| LAN controller | Atheros AR8151 10/100/1000 Mbit |
| Form factor | Micro ATX (24.4 mm × 19.4 mm) |
The board includes an Atheros AR8151 controller providing 10/100/1000 Mbit Ethernet.
Use the CLR_CMOS jumper to short the two pins temporarily, then remove the jumper before powering on.
It follows the Micro ATX form factor, measuring 24.4 mm × 19.4 mm.
