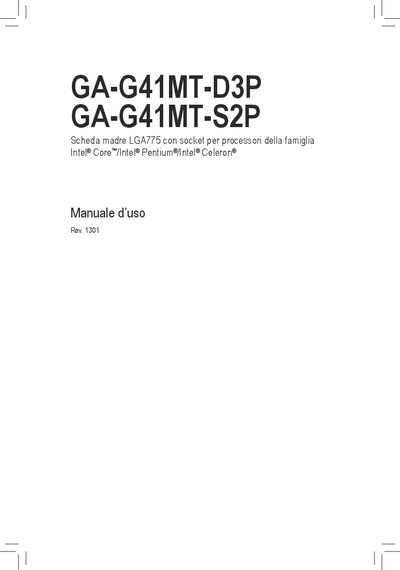

This document is the user manual for GIGABYTE GA-G41MT-D3P/GA-G41MT-S2P motherboard, which mainly introduces the installation method and precautions of the motherboard
This manual provides step‑by‑step instructions for installing the GA‑G41MT‑D3P and GA‑G41MT‑S2P motherboards, including CPU, memory, expansion cards and all internal and rear‑panel connectors. Safety precautions such as ESD protection and proper handling of screws and cables are emphasized.
The document also lists the technical specifications of the boards – supported Intel LGA775 CPUs, DDR3 memory configuration, chipset details, audio and LAN controllers, and the available PCI‑Express, SATA and USB ports – and describes BIOS features like DualBIOS and EasyTune. This manual is written in Italian.
| Chipset (North Bridge) | Intel G41 Express |
|---|---|
| Chipset (South Bridge) | Intel CH7 |
| Integrated graphics output | 1 D‑Sub port |
| Audio codec | VIA VT2021 / Realtek ALC889, 2‑5.1‑7.1 channels |
| LAN controller | Atheros AR8151 10/100/1000 Mbit |
| SATA ports | 4 × 3 Gb/s SATA |
| USB ports | 8 × USB 2.0/1.1 (4 rear, 4 internal) |
| Form factor | Micro ATX 24.4 cm × 19.4 cm |
Wear an antistatic wrist strap or keep your hands dry and touch a metal object before handling the board.
Four USB 2.0/1.1 ports are provided on the rear panel.
Both models are Micro ATX, measuring 24.4 cm by 19.4 cm.
