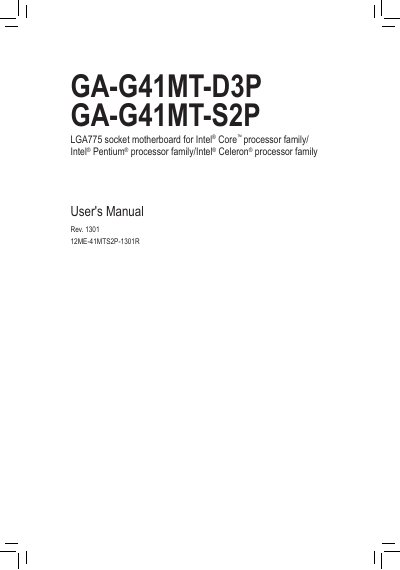

This manual provides instructions on how to use the GA-G41MT-D3P/G41MT-S2P motherboard.
The Gigabyte GA‑G41MT‑D3P and GA‑G41MT‑S2P are Micro ATX motherboards built around the Intel G41 Express north‑bridge and ICH7 south‑bridge. They support LGA775 processors from the Intel Core, Pentium and Celeron families and provide dual‑channel DDR3 memory up to 8 GB.
The manual guides users through hardware installation steps such as CPU, memory and expansion‑card mounting, explains the back‑panel and internal connectors, and details BIOS configuration, driver installation, and troubleshooting procedures. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Chipset (North Bridge) | Intel G41 Express |
| South Bridge | Intel ICH7 |
| Memory slots | 2 DDR3 DIMM sockets, up to 8 GB |
| Expansion slots | 1 PCIe x16, 2 PCIe x1, 1 PCI |
| SATA ports | 4 × 3 Gb/s SATA connectors |
| LAN controller | Atheros AR8151 (10/100/1000 Mbit) |
| Audio codec | VIA VT2021 / Realtek ALC889 |
| Form factor | Micro ATX (24.4 cm × 19.4 cm) |
| Power connectors | 1 × 24‑pin ATX main, 1 × 4‑pin ATX 12V |
It supports Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium and Celeron processors in the LGA775 package.
The board has two DDR3 DIMM sockets that together support up to 8 GB of system memory.
It provides one PCI Express × 16 slot, two PCI Express × 1 slots, and one standard PCI slot.
