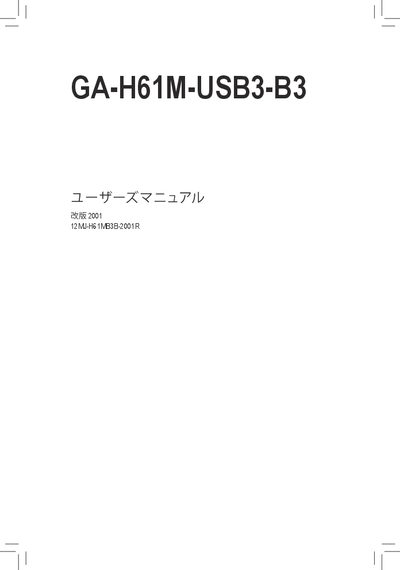

The GA-H61M-USB3-B3 User Manual introduces the hardware installation and BIOS setup methods of the motherboard, and provides product specifications and technical information.
This manual explains how to safely install the GA‑H61M‑USB3‑B3 motherboard, covering ESD precautions, connector handling, and power‑up procedures. It also lists the contents of the retail box, including the driver disc and SATA cables.
Detailed specifications are provided for the CPU socket, chipset, memory support, integrated graphics, audio codec, LAN controller, expansion slots, SATA and USB ports, as well as BIOS setup options and regulatory compliance statements. This manual is written in Japanese.
| Chipset | Intel H61 Express |
|---|---|
| Maximum Memory | 16 GB DDR3 |
| Audio Codec | Realtek ALC892 HD Audio |
| LAN Controller | Realtek Atheros GbE |
It provides two USB 3.0 ports on the rear panel.
It supports up to 16 GB of DDR3 memory.
