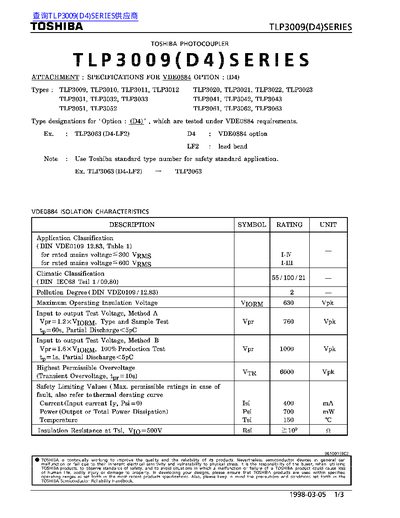

The TLP3009(D4) Series phot couplers are designed for safe electrical isolation and meet VDE0884 requirements. The document lists the type designations, option details, and compliance notes for the series.
Key specifications include rated mains voltages, insulation characteristics, creepage and clearance distances, and safety limits such as maximum input current, power dissipation, and temperature rating. The datasheet also contains test procedures for partial discharge and handling precautions for the GaAs material used in the devices.
| Rated mains voltage | 300 V RMS |
|---|---|
| Rated mains voltage | 600 V RMS |
| Maximum Operating Insulation Voltage (VIORM) | 630 Vpk |
| Input‑to‑output test voltage (Method A) | 760 Vpk |
| Input‑to‑output test voltage (Method B) | 1000 Vpk |
| Highest Permissible Overvoltage (Transient) | 6000 Vpk |
| Input current (Ip) | 400 mA |
| Power dissipation | 700 mW |
| Maximum temperature rating | 150 °C |
| Minimum creepage distance | 7.0 mm |
| Minimum clearance | 7.0 mm |
| Minimum insulation thickness | 0.5 mm |
| Comparative Tracking Index (OTI) | 175 |
The series is tested under VDE0884 requirements and carries the VDE0884 option marking.
The maximum input current is 400 mA.
Both the minimum creepage distance and the minimum clearance are 7.0 mm.
