This datasheet provides data information of TLP3041, including package, pin, function, feature, specification, test condition, supplier etc.

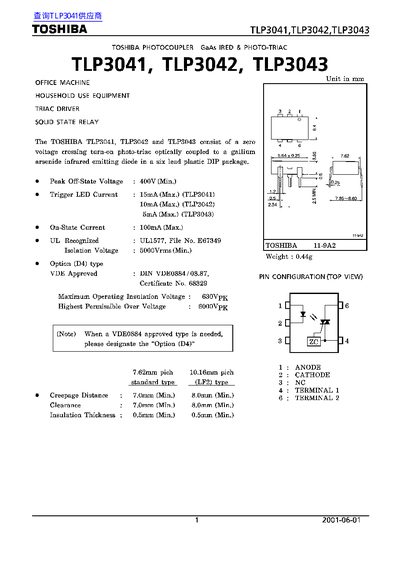

This datasheet provides the electrical characteristics, maximum ratings, and recommended operating conditions for the Toshiba TLP3041, TLP3042 and TLP3043 phototransistor/triac optocouplers. It includes pin configuration, isolation specifications, and typical application limits for office, household, and industrial equipment.
The document also outlines restrictions on product use, safety handling, and compliance information, emphasizing that the devices are not intended for safety‑critical or high‑reliability applications such as medical or aerospace equipment.
| Peak Off-State Voltage | 400 V (Min) |
|---|---|
| On-State Current | 100 mA (Max) |
| Isolation Voltage | 5000 Vrms (Min) |
| Forward Current (Ip) | 50 mA |
| Peak Forward Current | 1 A |
| Power Dissipation (Pp) | 100 mW |
| Junction Temperature (Tj) | 125 °C |
| Storage Temperature Range | -55 °C to 150 °C |
| Operating Temperature Range | -40 °C to 100 °C |
The maximum off‑state voltage is 400 V (minimum rating).
The devices are rated for operation from –40 °C to 100 °C.
The isolation voltage is specified as 5000 Vrms (minimum).
Yes, they are not intended for safety‑critical or high‑reliability applications such as medical, aerospace, or traffic control equipment.
