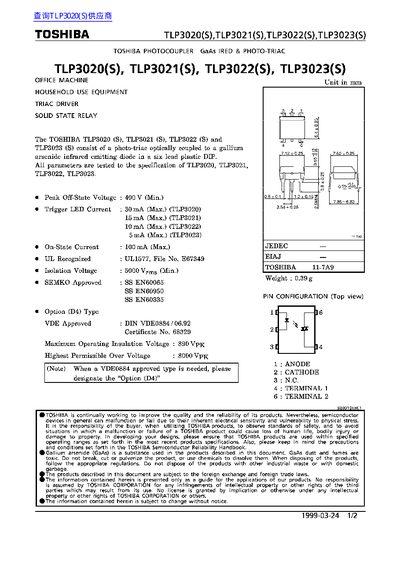

The Toshiba TLP3020, TLP3021, TLP3022 and TLP3023 series are GaAs infrared‑emitting diode (IRED) and photo‑triac optocouplers packaged in a six‑lead plastic DIP. They are intended for use in office machines, household equipment and as solid‑state relay/triac driver components. The devices combine a gallium arsenide LED with a photo‑triac, providing electrical isolation between input and output circuits.
Key specifications include an off‑state voltage of 400 V (min), on‑state current of 100 mA (max), isolation voltage of 5000 V (min) and compliance with UL1577, VDE and other safety standards. Mechanical data such as pin configuration, creepage distance, clearance and insulation thickness are provided for reliable PCB layout.
| Off‑State Voltage (Min) | 400 V |
|---|---|
| Trigger LED Current (TLP3020, Max) | 30 mA |
| Trigger LED Current (TLP3021, Max) | 15 mA |
| Trigger LED Current (TLP3022, Max) | 10 mA |
| Trigger LED Current (TLP3023, Max) | 5 mA |
| On‑State Current (Max) | 100 mA |
| Isolation Voltage (Min) | 5000 V |
| Maximum Operating Insulation Voltage | 890 V |
| Highest Permissible Over Voltage | 8000 V |
| Weight | 0.39 g |
| Creepage Distance (Min) | 7.0 mm / 8.0 mm |
| Clearance (Min) | 7.0 mm / 8.0 mm |
| Insulation Thickness (Min) | 0.5 mm |
The off‑state voltage is specified as a minimum of 400 V.
Yes, they are UL1577 recognized.
GaAs dust and fumes are toxic; avoid breaking, cutting, or pulverizing the devices and follow proper disposal regulations.
