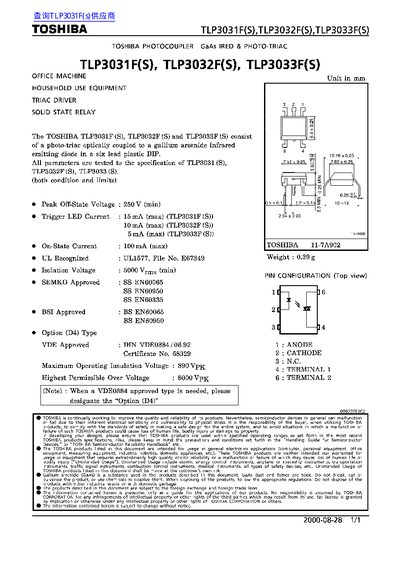

The Toshiba TLP3031F(S), TLP3032F(S) and TLP3033F(S) are GaAs infrared phototriac optocouplers packaged in a six‑lead plastic DIP. They are intended for general electronics applications such as computers, office equipment, measuring devices and industrial robotics.
The document provides electrical characteristics, pin configuration, approved safety certifications (UL, SEMKO, VDE, BSI) and handling warnings. It also lists maximum operating voltages, trigger LED currents for each model, and other important limits for reliable design.
| Peak Off‑State Voltage (min) | 250 V |
|---|---|
| Trigger LED Current (TLP3031F(S) max) | 15 mA |
| Trigger LED Current (TLP3032F(S) max) | 10 mA |
| Trigger LED Current (TLP3033F(S) max) | 5 mA |
| On‑State Current (max) | 100 mA |
| Isolation Voltage (min) | 5000 V |
| Maximum Operating Insulation Voltage | 890 VpK |
| Highest Permissible Over Voltage | 8000 VpK |
| Weight | 0.39 g |
| Package | Six‑lead plastic DIP |
The minimum peak off‑state voltage is 250 V.
The maximum on‑state current is 100 mA.
