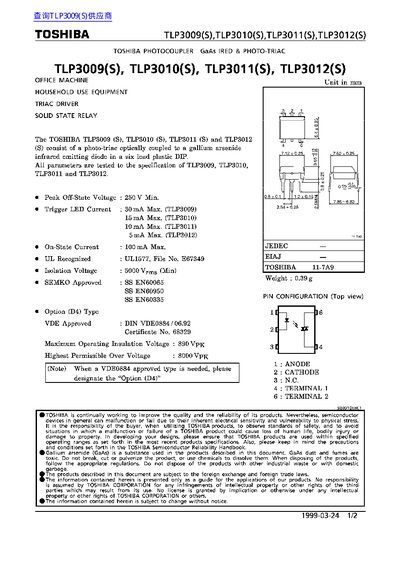

The TLP3009, TLP3010, TLP3011 and TLP3012 series are GaAs infrared emitting diode (IRED) phototriacs packaged in a six‑lead DIP. Each device integrates a photo‑triac optically coupled to a gallium‑arsenide LED, providing isolation for AC switching applications.
The datasheet lists key electrical specifications, mechanical dimensions, and safety certifications (UL1577, VDE, SEMKO, EN60065, EN60950, EN60335). It also includes handling precautions for the toxic GaAs material and notes on compliance with foreign trade regulations.
| Peak Off‑State Voltage | 250 V Min |
|---|---|
| On‑State Current | 100 mA Max |
| Isolation Voltage | 5000 V Min |
| Maximum Operating Insulation Voltage | 890 Vpk |
| Highest Permissible Over‑Voltage | 8000 Vpk |
| Creepage Distance (Min) | 7.0 mm / 8.0 mm |
| Clearance (Min) | 7.0 mm / 8.0 mm |
| Insulation Thickness (Min) | 0.5 mm |
| Weight | 0.39 g |
The peak off‑state voltage is 250 V minimum.
The maximum on‑state current is 100 mA.
Creepage distance is 7.0 mm (min) or 8.0 mm (min) and clearance is also 7.0 mm (min) or 8.0 mm (min) depending on the type.
