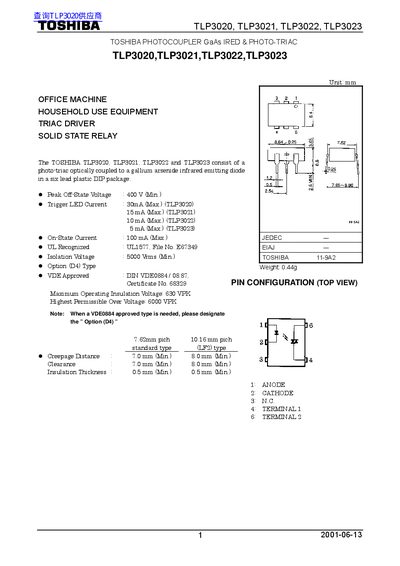

TLP3020, TLP3021, TLP3022, TLP3023 are TOSHIBA photocouplers, consisting of a photo-triac optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package.
The Toshiba TLP3020‑TLP3023 series are six‑lead DIP photocouplers that combine a gallium‑arsenide infrared emitting diode with a photo‑triac. They are intended for office‑machine, household‑use equipment, and general electronics applications.
The datasheet provides maximum ratings, electrical characteristics, operating temperature limits, and safety information, along with recommended operating conditions for each model in the series.
| Off‑State Output Terminal Voltage | 400 V |
|---|---|
| Isolation Voltage (AC, 1 min, RH ≤ 60 %) | 5000 Vrms |
| On‑State Current | 100 mA max |
| Power Dissipation | 100 mW |
The off‑state output terminal voltage is rated at 400 V.
The devices have an isolation voltage of 5000 Vrms (AC, 1 min, RH ≤ 60 %).
