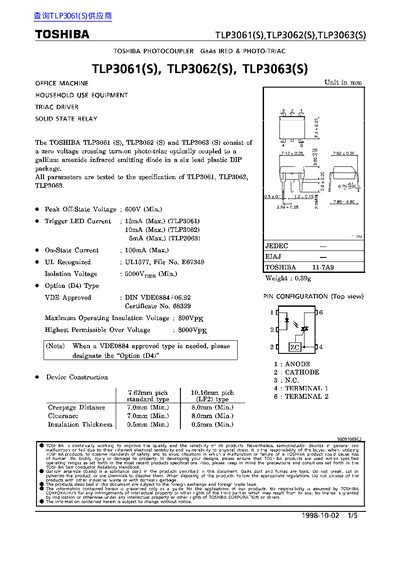

The TLP3061(S), TLP3062(S) and TLP3063(S) are GaAs infrared‑emitting diode optocouplers that combine a zero‑voltage‑crossing photo‑triac with a six‑lead DIP package. They are intended for use in office machines, household equipment and industrial control circuits where reliable switching and isolation are required.
The document lists maximum ratings, recommended operating conditions, individual and coupled electrical characteristics, and safety certifications (UL1577, VDE). Key parameters include a peak off‑state voltage of 600 V, isolation voltage of 5000 Vrms, and operating temperature range from –40 °C to 100 °C.
| Peak Off‑State Voltage | 600 V (Min.) |
|---|---|
| Forward Current (Ip) | 50 mA |
| Isolation Voltage | 5000 Vrms (Min.) |
| Supply Voltage | 240 Vac |
| Storage Temperature Range | ‑55 °C to 150 °C |
The peak off‑state voltage is specified as 600 V minimum.
The recommended supply voltage is 240 Vac.
The devices are UL1577 recognized and VDE approved (DIN VDE0884).
Isolation voltage is rated at 5000 Vrms minimum.
