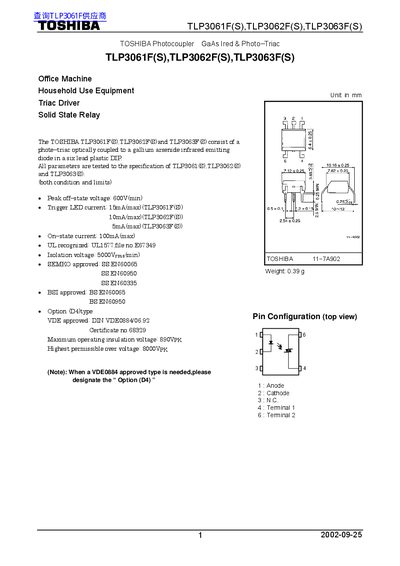

TLP3061F(S), TLP3062F(S), TLP3063F(S) are photocouplers consisting of a gallium arsenide infrared emitting diode optically coupled to a bidirectional triac. They have a minimum peak off-state voltage of 600V, a maximum trigger LED current of 15mA (TLP3061F(S)), 10mA (TLP3062F(S)), 5mA (TLP3063F(S)), and a maximum on-state current of 100mA. They are UL1577, SEMKO, BSI, and VDE approved with a minimum isolation voltage of 5000Vrms and a maximum permissible over voltage of 8000VPK.
The TLP3061F(S), TLP3062F(S) and TLP3063F(S) are GaAs infrared emitting diode optically coupled to a triac in a six‑lead DIP package. They are intended for general electronics applications such as office equipment, household appliances, and industrial robotics.
The document lists key electrical parameters, safety certifications (UL 1577, SEMKO, BSI, VDE) and handling precautions, and warns against use in high‑risk equipment like medical or aerospace devices. It also notes the toxic nature of GaAs and proper disposal requirements.
| Peak off‑state voltage | 600V (min) |
|---|---|
| Trigger LED current (TLP3061F(S)) | 15mA (max) |
| On‑state current | 100mA (max) |
| Isolation voltage | 5000V rms (min) |
| Maximum operating insulation voltage | 890V PK |
| Highest permissible over voltage | 8000V PK |
| Weight | 0.39 g |
The peak off‑state voltage is 600 V minimum.
They are UL 1577 listed, SEMKO approved, BSI approved, and VDE approved (Option D4).
GaAs dust and fumes are toxic; do not break or pulverize the product and follow appropriate hazardous waste regulations.
