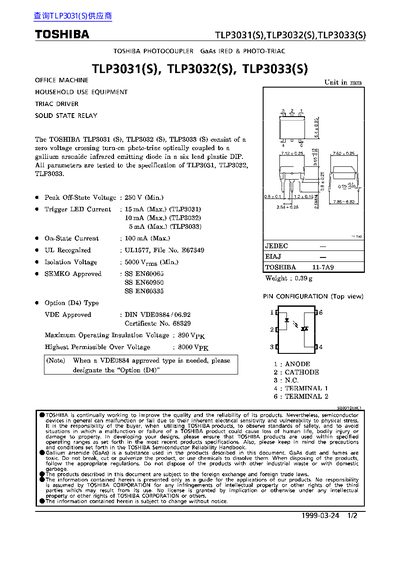

The Toshiba TLP3031(S), TLP3032(S) and TLP3033(S) are solid‑state relay devices that combine a gallium‑arsenide infrared emitting diode with a photo‑triac. They are supplied in a six‑lead plastic DIP package and are intended for office‑machine and household‑use equipment.
The document provides electrical characteristics such as peak off‑state voltage, trigger LED current, on‑state current, isolation voltage, as well as mechanical data like creepage, clearance and insulation thickness. Safety certifications (UL1577, VDE0884/06.92, SEMKO) and handling warnings for GaAs are also included.
| Peak Off‑State Voltage | 250 V (Min.) |
|---|---|
| On‑State Current | 100 mA (Max.) |
| Isolation Voltage | 5000 V (Min.) |
| Maximum Operating Insulation Voltage | 890 V |
| Highest Permissible Over Voltage | 8000 V |
| Creepage Distance | 7.0 mm (Min.) |
| Clearance | 7.0 mm (Min.) |
| Insulation Thickness | 0.5 mm (Min.) |
The peak off‑state voltage is specified as a minimum of 250 V.
