TLP296G is a photocoupler produced by TOSHIBA. It adopts 8-pin DIP package and can be used as a bidirectional switch to replace mechanical relays in many applications.

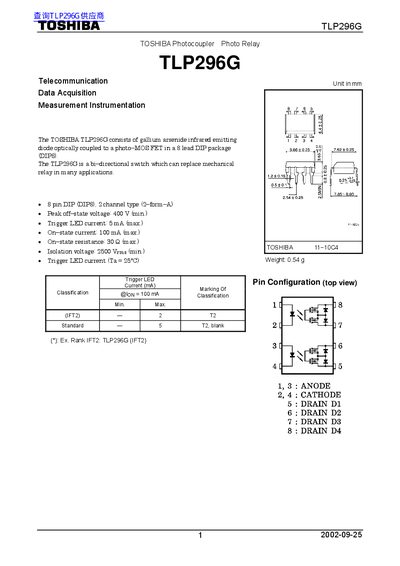

The TLP296G is a gallium‑arsenide infrared emitting diode optically coupled to a photo‑MOSFET in an 8‑lead DIP package. It functions as a bi‑directional switch that can replace mechanical relays in many applications.
The document lists maximum ratings, recommended operating conditions, individual and coupled electrical characteristics, isolation and switching parameters, as well as restrictions on product use and safety handling information.
| Peak off‑state voltage | 400 V (min) |
|---|---|
| On‑state current | 100 mA (max) |
| On‑state resistance | 30 Ω (max) |
| Isolation voltage | 2500 Vrms (min) |
| Forward voltage (typical) | 1.15 V |
| Reverse current (max) | 10 µA |
| Capacitance (typical) | 30 pF |
| Supply voltage (max) | 320 V |
| Operating temperature range | -20 °C to 80 °C |
The maximum on‑state current is 100 mA.
The device has an isolation voltage rating of 2500 Vrms minimum.
Typical forward voltage is about 1.15 V.
The recommended supply voltage can be up to 320 V.
