TLGU1002A is a connector product manufactured by EACH. The product is mainly used for computer peripheral equipment. Its specific technical parameters are as follows: the voltage range is 12V, the current range is 0.5A, the bandwidth is 100MHz, and the cable type supported is screened twisted pair. The product's package type is DIP-8

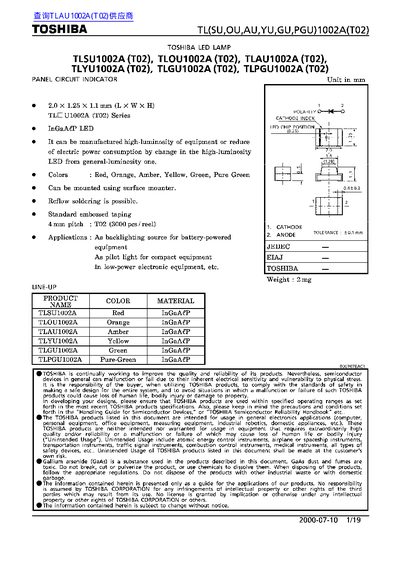

The Toshiba TLSU1002A series comprises surface‑mount LED lamps available in six colors (Red, Orange, Amber, Yellow, Green, Pure‑Green). Each device measures 1.25 × 1.1 mm (L × W) and weighs about 2 mg. The lamps are designed for back‑lighting of battery‑powered equipment, pilot lights for compact devices, and other low‑power electronic applications.
The document provides maximum ratings, electrical and optical characteristics, radiation patterns, and packaging information. Devices are supplied on reels of 8 000 units, packed in sealed aluminum packs with silica gel, and shipped in cartons holding up to 15 000 devices.
| Maximum forward current (TLSU1002A) | 60 mA |
|---|---|
| Typical forward voltage (TLSU1002A) | 2.4 V |
| Weight per device | 2 mg |
| Package dimensions (L × W × H) | 1.25 × 1.1 mm |
The TLSU1002A device is rated for a maximum forward current of 60 mA; other variants are rated at 62.5 mA.
The series is available in Red, Orange, Amber, Yellow, Green, and Pure‑Green.
