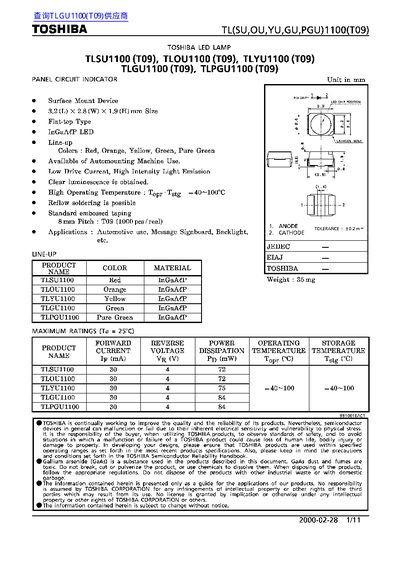

This leaflet provides specifications, electrical and optical characteristics, and handling guidelines for the Toshiba TL(SU,OU,YU,GU,PGU)1100 series LED lamps (TLSU1100, TLOU1100, TLYU1100, TLGU1100, TLPGU1100). It includes forward current, voltage, power dissipation, luminous intensity, and peak emission wavelength for each model.
Additional sections cover recommended soldering profiles, reel dimensions, packing form, and labeling details to assist designers and manufacturers in integrating these LEDs into products.
| Forward current (TLSU1100) | 30 mA |
|---|---|
| Forward voltage (TLSU1100) | 4 V |
| Power dissipation (TLSU1100) | 12 mW |
| Operating temperature range | -40 °C to 100 °C |
| Typical luminous intensity (TLSU1100) | 80 mcd |
| Peak emission wavelength (TLSU1100) | 636 nm |
| Devices per reel | 1000 |
Each reel contains 1000 devices.
The LEDs operate from –40 °C to 100 °C.
Use AK225 or alcohol, at 50 °C (max) for 30 s or 30 °C (max) for 3 minutes.
