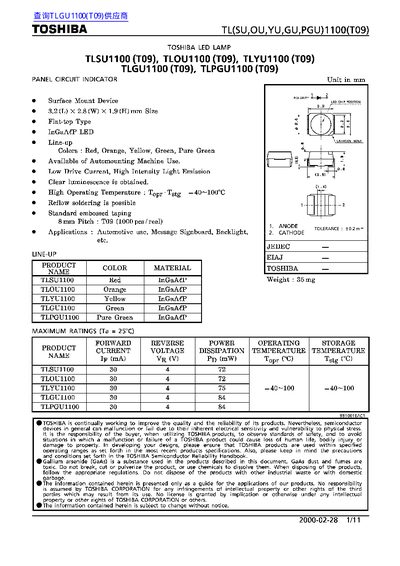

TOSHIBA TLSU1100(T09) TLOU1100(T09) TLYU1100(T09) TLGU1100(T09) TLPGU1100(T09) handbook(1)

TLGU1100 is TLGU1100's technical parameters

Brand: Toshiba
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 11
File format: PDF
File size: 385 KB
Published: 01 June, 2012
Updated: 30 September, 2023
Models: TLSU1100, T09, TLOU1100, TLYU1100, TLGU1100, TLPGU1100
MD5 checksum: 1F20B81969B142C253E5FBFABF0AF191
PDF: TOSHIBA TLSU1100(T09) TLOU1100(T09) TLYU1100(T09) TLGU1100(T09) TLPGU1100(T09) handbook(1) PDF

About this manual

This datasheet describes the Toshiba TL(SU,OU,YU,GU,PGU)1100(T09) LED lamp family, covering five color variants (Red, Orange, Yellow, Green, Pure Green) intended for automotive, signage and backlight applications. It lists maximum ratings, electrical and optical characteristics, and handling guidelines.

Key data include forward current of 30 mA, reverse voltage of 4 V, typical luminous intensity up to 80 mcd, peak emission wavelengths between 562 nm and 636 nm, and packaging details such as 1000 devices per reel and recommended soldering temperatures.

What's inside

Maximum Ratings
Electrical Characteristics
Optical Characteristics
Soldering Recommendations
Reel Dimensions
Packing Form
Notation Method

Specifications

Forward current (mA)	30
Reverse voltage (V)	4
Typical luminous intensity (mcd)	80
Peak emission wavelength (nm)	636
Devices per reel	1000
Maximum reflow soldering temperature (°C)	240

Frequently asked questions

What is the recommended maximum temperature for reflow soldering the TLSU1100 series?

The datasheet specifies a maximum reflow soldering temperature of 240 °C.

How many devices are packed on each reel?

Each reel contains 1000 devices.

What forward current rating do the TLSU1100 series LEDs have?

The forward current rating is 30 mA for all models.

What color options are available for the TLSU1100 series?

The series is offered in Red, Orange, Yellow, Green, and Pure Green.
