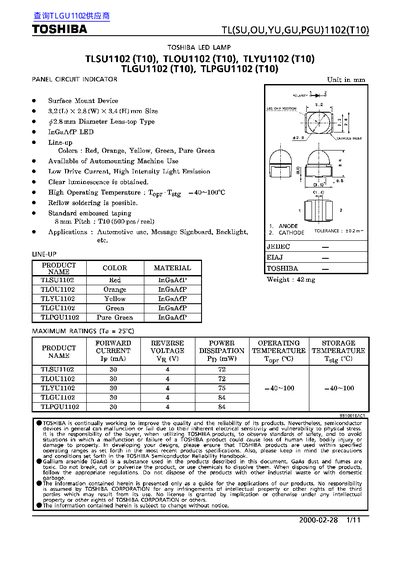

The TL series (TLSU1102, TLOU1102, TLYU1102, TLGU1102, TLPGU1102) are surface‑mount LED lamps offered in red, orange, yellow, green and pure‑green colors for automotive, signboard and backlight applications. They feature low drive current, high intensity, and can be reflow soldered.
Key data include forward voltage around 20 V, forward current of 30 mA, luminous intensity up to 200 mcd, and peak emission wavelengths from 562 nm to 636 nm. Devices are supplied on 8 mm pitch T10 reels (500 pcs per reel) and packed in sealed aluminum packs with silica gel.
| Forward Voltage (typ.) | 20 V |
|---|---|
| Forward Current | 30 mA |
| Luminous Intensity (typ.) | 200 mcd |
| Peak Emission Wavelength | 636 nm |
| Devices per Reel | 500 |
Reflow soldering may be performed up to a maximum of 240 °C, with a typical profile of 140‑160 °C for 10 seconds.
Each reel contains 500 devices.
The LEDs can operate from –40 °C to +100 °C.
Use AK225 or alcohol, with a temperature of 50 °C for up to 30 seconds.
