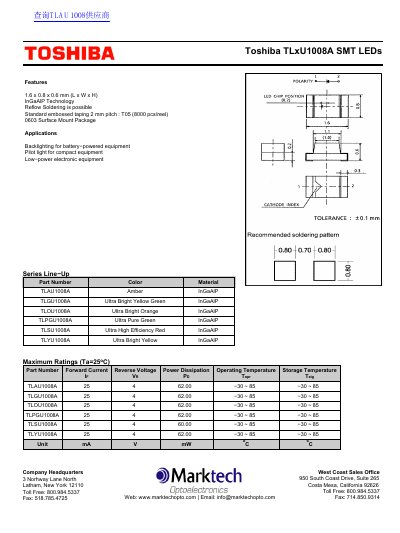

Toshiba TLxU1008A SMT LEDs is a LED light produced by Toshiba company. It features small size, high luminous efficiency and is widely used in battery powered equipment, compact equipment's backlight and low power electronic equipment.
The TLxU1008A series are 0603 surface‑mount LEDs designed for backlighting, pilot lights, and low‑power electronic equipment. The series includes amber, yellow, green, orange, and red color options.
Key specifications include a package size of 1.6 × 0.8 × 0.6 mm, forward current of 25 mA, reverse voltage of 4 V, power dissipation up to 62 mW, and operating temperature from –30 °C to 85 °C. Optical data such as peak wavelength, view angle, and luminous intensity are listed for each color variant.
| Package dimensions | 1.6 × 0.8 × 0.6 mm (L × W × H) |
|---|---|
| Package type | 0603 Surface Mount |
The LEDs are intended for backlighting of battery‑powered equipment, pilot lights for compact devices, and low‑power electronic equipment.
