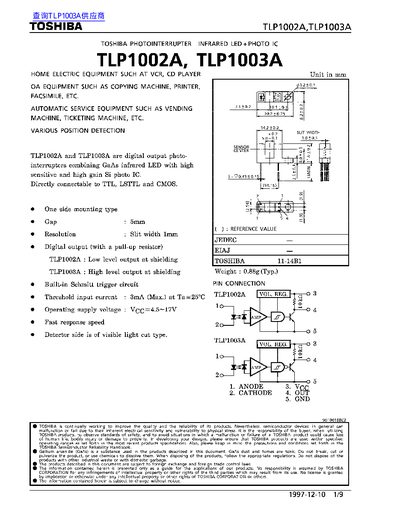

The TLP1002A and TLP1003A are digital‑output photo interrupters that combine a GaAs infrared LED with a high‑gain Si photo‑IC. They are designed for use in home electric equipment such as VCRs, CD players, printers, copiers, vending machines and other automatic service equipment.
Key specifications include a supply voltage range of 4.5 V to 17 V, low‑level or high‑level digital output with a pull‑up resistor, forward current rating of 50 mA, reverse voltage of 5 V, power dissipation up to 250 mW, and an operating temperature range of –25 °C to 85 °C. The document also lists handling precautions, soldering guidelines, and recommended mounting of the shutter and device.
| Supply Voltage | 4.5 V ~ 17 V |
|---|---|
| Output Type | Digital output with pull‑up resistor |
| Forward Current (Ip) | 50 mA (max) |
| Reverse Voltage (VR) | 5 V |
| Operating Temperature Range | -25 °C ~ 85 °C |
| Power Dissipation (Po) | 250 mW |
| Threshold Input Current | 3 mA (max) |
| Weight | 0.88 g (typ.) |
The TLP1002A provides a low‑level digital output at shielding.
The devices operate with a supply voltage between 4.5 V and 17 V.
Soldering should be performed after lead forming.
