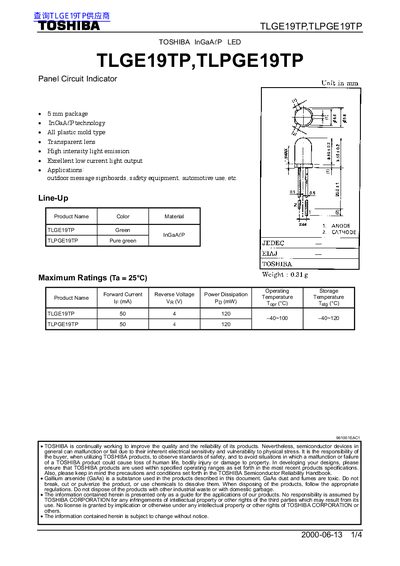

This document describes the features and characteristics of TLGE19TP and TLPGE19TP TOSHIBA InGaAlP LED panel circuit indicators, including 5mm package, InGaAlP technology, all plastic mold type, transparent lens, high intensity light emission, excellent low current light output, etc. They are suitable for outdoor message signboards, safety equipment, automotive use, etc.
The TLGE19TP and TLPGE19TP are InGaAsP LEDs offered by Toshiba in green and pure‑green colors. They are intended for outdoor message signboards, safety equipment, automotive use and similar applications.
The datasheet provides key electrical and optical parameters such as emission wavelength, forward voltage, maximum forward current, reverse voltage, power dissipation and package dimensions, together with recommended soldering conditions and safety precautions.
| Package size | 5 mm |
|---|---|
| Weight | 0.31 g |
| Maximum soldering temperature | 260 °C |
| Maximum soldering time | 3 s |
Soldering temperature must not exceed 260 °C, with a soldering time of no more than 3 seconds.
Yes, the visible LED also emits some IR light, so photodetectors should be kept away.
They are used in outdoor message signboards, safety equipment, and automotive applications.
