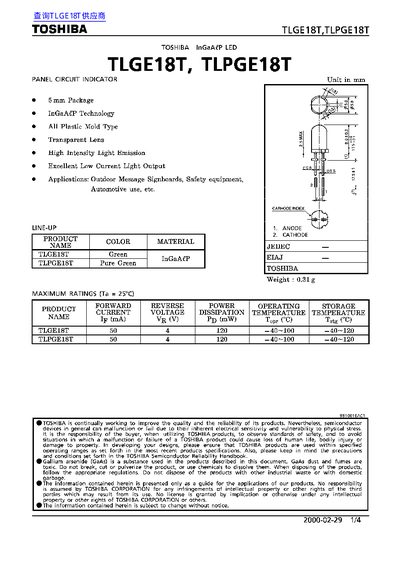

This handbook describes the TLGE18T and TLPGE18T green InGaAsP LEDs, including package size, weight, and typical applications such as outdoor signboards, safety equipment, and automotive use. It lists the maximum ratings for forward current, forward and reverse voltage, and operating and storage temperature ranges.
Electrical and optical characteristics are given for a forward current of 20 mA at 25 °C, with forward voltage typical values, luminous intensity curves, and radiation patterns. Precautions cover soldering temperature limits, lead forming, and IR emission safety.
| Package size | 5 mm |
|---|---|
| Lens type | Transparent |
| Weight | 0.31 g |
| Maximum forward current | 50 mA |
| Maximum forward voltage | 4 V |
| Maximum reverse voltage | 120 V |
| Soldering temperature limit | 260 °C max, 3 s max |
The maximum forward current is 50 mA.
Soldering should not exceed 260 °C and the soldering time should be limited to 3 seconds.
If a photodetector is near the LED, ensure it will not be affected by the emitted IR light.
