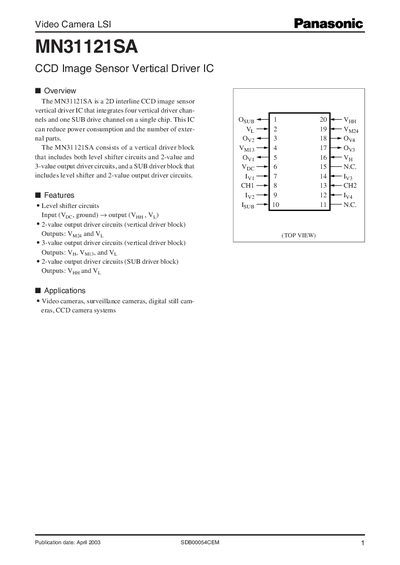

MN31121SA is a vertical driver IC for CCD image sensors that integrates four vertical driver channels and one SUB drive channel.
The MN31121SA is a 2‑D interline CCD image sensor vertical driver IC that integrates four vertical driver channels and one SUB driver channel on a single chip, reducing power consumption and external parts. It includes level shifter circuits and both 2‑value and 3‑value output driver circuits for vertical and SUB driver blocks.
The document lists detailed electrical ratings, pin functions, package dimensions, and usage notes such as recommended reflow temperature and guaranteed power‑cycle life, helping designers integrate the IC into video cameras, surveillance systems, and other electronic equipment.
| Supply voltage 1 | 32 V |
|---|---|
| Supply voltage 2 | 30 V |
| Operating temperature | -10 to +70 °C |
| Power dissipation | 180 mW |
| Maximum DC load current | 3 mA |
| Package type | SSOP020-P-0225 |
The recommended reflow soldering temperature is 230 °C.
The MN31121SA is guaranteed for 10,000 power‑cycle operations.
The device operates from –10 °C to +70 °C.
