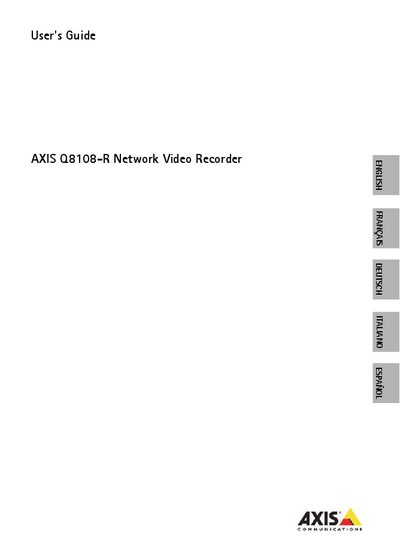

This document is a user guide for AXIS Q8108-R Network Video Recorder
This guide explains how to install and configure the Axis Q8108-R network video recorder. It includes safety and legal considerations, such as compliance with EMC, FCC, and RoHS regulations, and notes that the device must be installed by a trained professional.
The manual covers the hardware layout, including eight PoE RJ‑45 ports, a 1 Gbit Ethernet port, USB 2.0 ports, power and I/O connectors, and LED indicators. Installation instructions detail mounting, cable routing, power requirements, and optional IP65 sealing. Technical specifications and pin assignments are also provided.
| PoE network connectors | 8 RJ‑45 Ethernet ports |
|---|---|
| Maximum PoE load per group | 16 W |
| Power supply options | 12 V DC (10 A) or 24 V DC (5 A) |
| Dimensions | 193.6 mm (7.6 in) |
Each PoE group can supply up to 16 W of power.
It has eight PoE RJ‑45 ports and one 1 Gbit Ethernet port.
A fused power supply of either 12 V DC (10 A) or 24 V DC (5 A) is required.
Yes, but the cable shelf should be pointing up for optimal heat dissipation.
