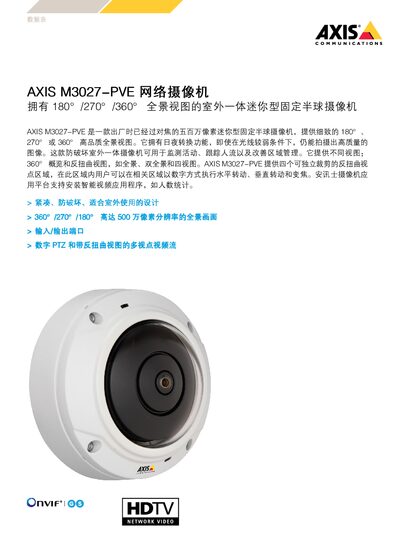

The Axis M3027-PVE network camera data sheet lists specifications, features, and installation details for this outdoor mini‑dome camera.
The M3027-PVE is an outdoor mini‑dome network camera with a 1/3.2" progressive‑scan RGB CMOS sensor and a fixed 180°/270°/360° panoramic view. It offers day‑night operation, digital PTZ, and up to four independently‑cropped de‑warped view areas, supporting intelligent video applications such as people counting.
The sheet provides technical data including resolution, frame rates, lens optics, power options, environmental ratings, and supported network protocols, as well as information on storage, video compression formats, and available accessories. This manual is written in Chinese.
| Maximum resolution | 2592 × 1944 (5 MP) |
|---|---|
| Frame rate (360° overview) | 12 fps |
| Horizontal field of view | 187° |
| Vertical field of view | 168° |
| IR illumination (B/W) | 0.06 lux (F2.0) |
| Power over Ethernet | IEEE 802.3af/802.3at, up to 4.5 W |
| Dimensions | Ø 132 × 73 mm |
| Operating temperature (non‑condensing) | -30 °C to 50 °C |
| Video compression | H.264 Baseline & Main, Motion JPEG |
| Memory | 512 MB RAM, 128 MB flash |
The camera can capture up to 2592 × 1944 pixels, which is a 5 MP resolution.
Yes, it supports IEEE 802.3af/802.3at PoE with a maximum power consumption of 4.5 W.
It supports H.264 Baseline and Main profiles as well as Motion JPEG.
