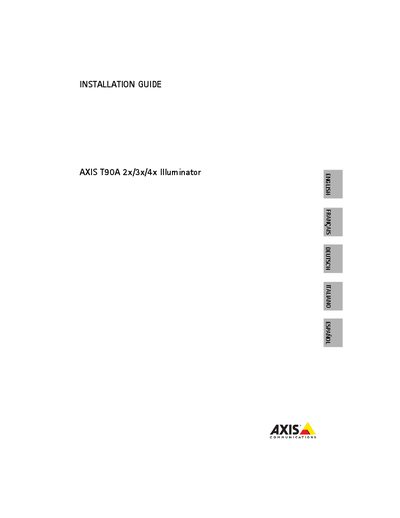

This guide provides instructions for installing the AXIS T90A 2x/3x/4x.
This guide provides step‑by‑step instructions for installing the Axis T90A illuminator, including a list of package contents, mounting procedures, wiring connections, and power‑supply adjustments. It also describes the adaptive illumination features and how to configure the telemetry input for remote control.
The document includes specifications for the power supply, technical drawings, and detailed setup instructions such as vertical and horizontal illumination adjustment, polarity‑sensitive LED output connections, and safety cautions.
| Fuse rating (4x/3x models) | 2.5 A anti‑surge |
|---|---|
| Output current (4x model) | 4.4 A @ 13.5 V |
| Adjustable power range | 10 % – 100 % |
| Weight (4x model) | 1.85 kg |
| Dimensions (4x model) | 160 mm × 160 mm × 81 mm |
| Mounting holes | 4 × M4 holes |
Mount the illuminator, then mount the power‑supply unit, adjust the lead length as needed, connect the LED output, adjust the PSU and telemetry if required, and finally connect the mains.
The LED output cables are polarity‑sensitive: red is positive (+ve) and black is negative (‑ve).
Adjust the illumination vertically to target the area, then adjust it horizontally via Adaptive Illumination to match the camera’s field of view, and fine‑tune the power using the adjustable photocell on the PSU.
