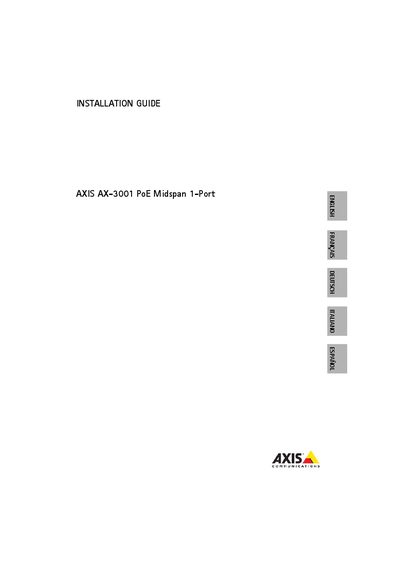

This document is an installation guide for Axis AX-3001 PoE Midspan 1-Port, providing instructions for the installation and removal of the PoE Midspan. It also specifies the requirements for the power cord and provides safety information.
The AX-3001 PoE Midspan adds 48 V DC power to unused pairs of a standard Category 5 Ethernet cable (Mode B) and complies with IEEE 802.3af. It provides both data and power to a connected terminal and requires qualified personnel for installation.
The guide details safety requirements, power‑cord specifications, mounting options, cable length limits, indicator functions, electrical specifications, and troubleshooting steps to ensure correct and safe operation.
| Input voltage | 90 to 264 V AC (47‑63 Hz) |
|---|---|
| Input current (max) | 0.5 A |
| Minimum available output power | 15.4 W |
| Nominal output voltage | 45 to 56 V DC |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Ethernet input interface | 10/100Base‑T RJ‑45 female socket |
| Ethernet output interface | 10/100Base‑T RJ‑45 female socket with 48 V DC on pairs 7‑8 and 4‑5 |
The Ethernet cable length from the network source to the terminal must not exceed 100 meters (333 feet).
A green blinking LED on the AC indicator shows that the output voltage is out of range, indicating overload or short‑circuit.
