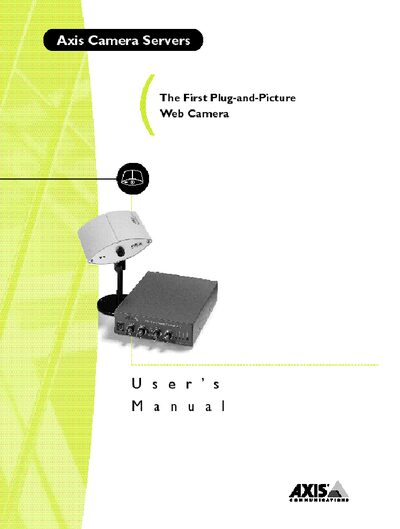

The Axis 200+ Network Camera Server User Manual provides installation, configuration, operation, and troubleshooting instructions.
This manual covers safety notices, legal considerations, and an overview of the AXIS 200+ Network Camera Server, a digital snapshot camera with a built‑in web server for live image delivery over Ethernet networks.
It details step‑by‑step installation, IP address assignment, configuration, usage features such as automatic picture updates, and includes technical specifications, auxiliary I/O, RS232 serial port information, and CRON script commands for advanced control.
| Network connector | 10baseT (RJ‑45) twisted‑pair Ethernet |
|---|---|
| CPU | 32‑bit RISC processor (ETRAX) |
| Flash memory | 2 Mbytes |
| RAM | 2 Mbytes |
| Maximum image resolution (JPEG) | 704 × 576 pixels |
| Lens mount | CS mount (C mount with C/CS ring) |
| Power supply | 12 V AC, 9.6 VA (or 11‑18 V DC, min 600 mA) |
| Operating temperature | 40‑105 °F (5‑40 °C) |
| Dimensions (H × W × L) | 1.6 in × 4.9 in × 6.1 in (4.0 × 12.5 × 15.5 cm) |
| Weight | 1.0 lb (0.5 kg) excluding power supply |
Use the installation step "Assigning an Internet Address" (Stage 4) described in Section 2 of the manual.
It uses a 10baseT RJ‑45 twisted‑pair Ethernet connector.
The device requires a 12 V AC supply at 9.6 VA, or an alternative 11‑18 V DC input (minimum 600 mA).
The camera supports JPEG images up to 704 × 576 pixels.
