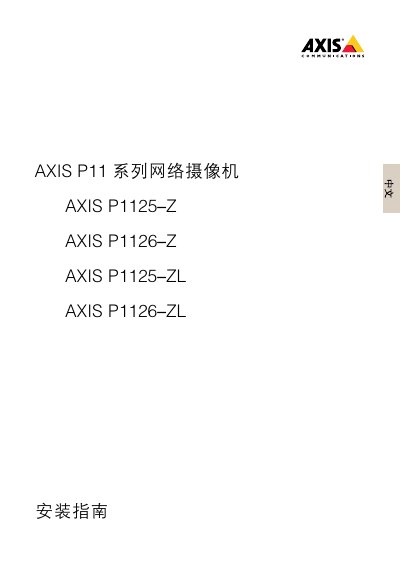

This installation guide provides safety information, hardware overview, wiring, LED indicators, SD‑card slot, power and I/O configuration for Axis P11…
The guide begins with legal considerations and safety information, then presents a hardware overview of the Axis P11 series, describing the focus rings, control button, I/O ports, audio connectors, micro‑SD slot, LED indicators and power connector. Detailed explanations cover LED network and status signals, audio connections, network (RJ45) with PoE support, and recommended cabling.
Subsequent sections describe power requirements (12 V DC or 24 V AC), I/O voltage and current limits, SD‑card handling precautions, and step‑by‑step procedures for installing the camera, configuring the network, and resetting the device to factory defaults. Contact and support information is provided at the end. This manual is written in Chinese.
| Power input | 12 V DC / 24 V AC |
|---|---|
| Network LED indicator (green) | Steady – 100 Mbit/s connection |
| Network LED indicator (yellow) | Steady – 10 Mbit/s connection |
| I/O DC output | 3.3 V, max 200 mA |
| I/O input voltage range | 0–30 V DC, max 100 mA |
Power off the device, hold the control button for 15–30 seconds until the LED status indicator flashes yellow, then release the button; when the LED turns green the reset is complete.
Use shielded twisted‑pair (STP) CAT5 cable or a higher‑grade cable.
The camera supports microSD, microSDHC and microSDXC cards (cards are not included).
