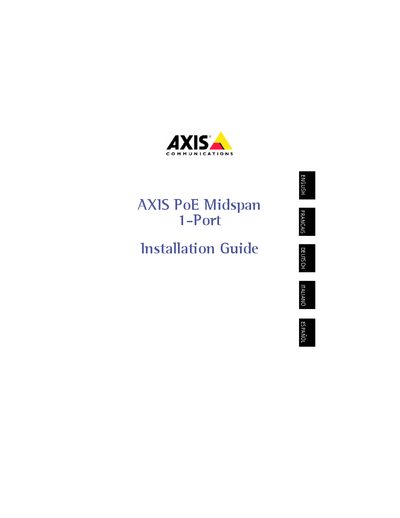

This document introduces the installation and use of AXIS PoE Midspan 1-Port.
The Axis PoE Midspan 1-Port adds 48 V DC to unused pairs of a standard Category‑5 Ethernet cable, delivering both data and power in compliance with IEEE 802.3af. It is intended for use with Ethernet‑compatible devices and requires a qualified installer.
The guide covers safety precautions, required power‑cord specifications, mounting options, cable‑length limits, connector types, LED indicators, and a troubleshooting section for common power‑up and link issues. Technical specifications such as input voltage range, output power and environmental limits are also listed.
| Input voltage | 90 to 264 V AC (47‑63 Hz) |
|---|---|
| Input current (max) | 0.5 A |
| Minimum available output power | 15.4 W |
| Nominal output voltage | 45 to 56 V DC |
| Ethernet input interface | 10/100Base‑T RJ45 female socket |
| Ethernet output interface | 10/100Base‑T plus 48 V DC RJ45 female socket |
| Storage temperature | -4 °F to 158 °F |
No, the unit powers on automatically when connected to an AC outlet.
