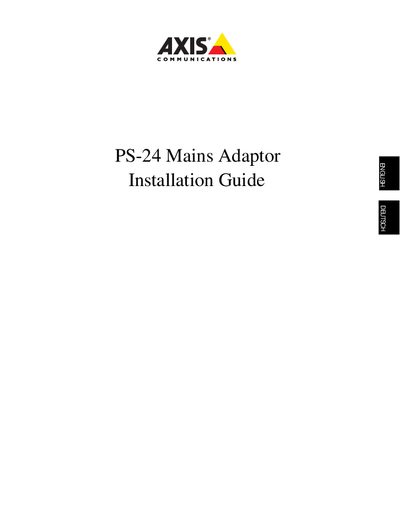

AXIS PS-24 Mains Adaptor Installation Guide

About this manual

The guide explains how to mount the PS‑24 box using the supplied holders, concrete plugs, and screws, and provides alternative mounting options such as a vandal‑proof PSU box for pole or flat‑surface installation. It also details the required tools and hardware, including concrete screws and sleeve anchors.

Wiring instructions cover connecting the power cable, setting the voltage selector switch, and attaching the terminal connectors for camera power and alarm inputs/outputs. Safety notes stress that the power switch does not disconnect mains voltage and that installation should be performed by an authorized electrician.

What's inside

• Package contents
• Mounting the PS‑24 box
• Alternative installation – PSU box
• Connecting power to the PS‑24
• Connecting AXIS 231D/232D power and alarm inputs/outputs
• Connecting AXIS 225FD power and alarm inputs/outputs
• Specifications

Specifications

Frequently asked questions

How should the PS‑24 be mounted on a wall or pole?

Use the supplied plastic holders, concrete plugs, and screws to attach the box; for pole mounting, use the optional pole‑mount holder and follow the recommended pole‑diameter guidelines.

Which position should the voltage selector switch be set to for different mains voltages?

Set the switch to 115 V when the mains supply is 100‑120 V, and to 230 V when the mains supply is 220‑240 V.

Does the power switch disconnect the mains voltage?

No. The power switch only turns the camera on or off; high voltage remains present even when the switch is off.

What type of cables are recommended for connecting the PS‑24?

Use copper power cables AWG 16‑18 (or 4.5 mm) and input cables AWG 16‑28 (or 1.5 mm).
