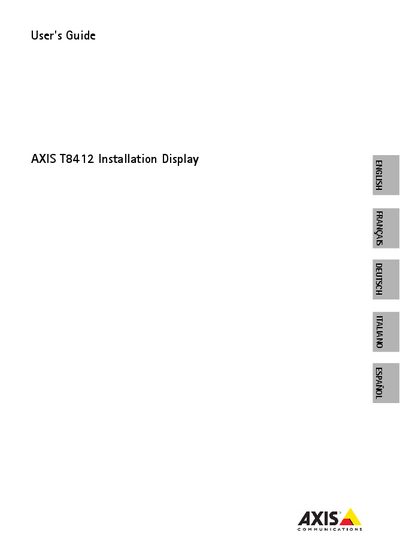

Axis T8412 Installation Display User Guide

This document contains instructions for setting up and using the AXIS T8412 Installation Display.

Brand: AXIS
Category: Monitor
Document type: User Manual
Language: English
Pages: 22
File format: PDF
File size: 1.2 MB
Published: 01 June, 2012
Updated: 30 September, 2023
MD5 checksum: 22A5650F123E47D4ADCB383BC20F4BD6
PDF: Axis T8412 Installation Display User Guide PDF

About this manual

The Axis T8412 Installation Display is a battery‑powered handheld device that simplifies the field installation of Axis network and analog cameras. It provides live video, touchscreen zoom, snapshot functions and PoE power to cameras.

The guide explains how to power up the unit, connect to cameras via Ethernet, Wi‑Fi or BNC, use the digital zoom and pan/tilt features, and manage battery charging and storage.

What's inside

Overview
Battery and Power
Power Up Procedure
Viewing Images
Menus and Setup
Connecting to an IP Camera
Snapshot Function
Network Cable Test
AV In (BNC) Connector
Technical Specifications

Specifications

Battery	7.4 V Li‑ion 2200 mAh
Power Supply Adapter	12 V DC
Power Bank Output	48 V DC
LAN/PoE OUT	Provides power to PoE‑enabled cameras

Frequently asked questions

How long does the battery last during operation?

The battery provides up to 3 hours of run time.

How long does it take to fully charge the battery?

Charging the battery takes approximately 4 hours.

What type of connector is used for analog cameras?

An BNC connector (AV in) is used for analog cameras.

How do I power on the Axis T8412?

Set the power switch to ON and hold the Start key for 3 seconds; the power indicator will light.
